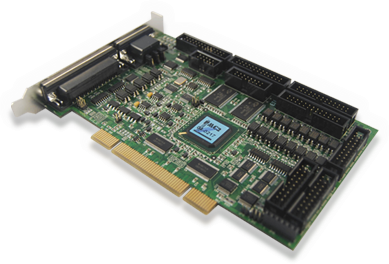

PMC2

Specifications

• Built-in DSP: Marking computation does not occupy PC CPU time.
• Digital Galvo Output: Supports one 16-bit XY2-100 signal, updates galvo motor position every 10μs.
• Pulse Features: Supports FPK, PPK, R05 first pulse suppression.
• Analog Control: Two 10-bit analog output signals.
• Encoder Inputs:
  • 3-way encoder inputs
  • 3-way XY2-100 channels for XYZ signals
• PWM Output:
  • Max frequency: 10 MHz
  • Min pulse width: 0.08 μs
• Motion Control:
  • 4-way Pulse/Direction for stepper or servo motors
  • Max output frequency: 2 MHz
• Digital I/O:
  • 16-bit general-purpose digital outputs
  • 16-bit digital inputs
• Laser Control:
  • Specific 16-bit laser control digital outputs
• Operating System Support:
  • Windows XP / 2000 / Vista / Windows 7
