RTC4

Key Features of All RTC Control Boards

• Synchronous Control: Precise synchronization between scan system and laser for accurate marking.
• Universal Laser Compatibility: Supports control modes for all common types of lasers.
• Flexible Process Programming: Enables customizable programming for both vector and bitmap marking workflows.
• Automatic Field Correction: Integrated image field correction ensures consistent quality across the entire marking area.
• Advanced Application Support:
  • 3D marking capabilities
  • “Processing on the fly” for dynamic, real-time applications

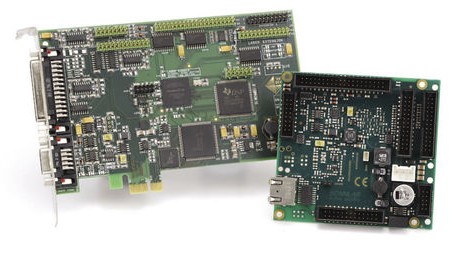

RTC4

• PC Interface: PCI Express, Ethernet
• Standalone Operation: No
• Remote Interface: No
• Data Streaming: No

Scan Head Interface

• Protocol: XY2-100
• Galvanic Isolation: No
• Channels: 2 / 3
• Resolution: 16 bit
• Connector: 25-pin D-SUB

Laser Interface

• Connector: 9-pin D-SUB

Additional Features

• SCANahead Support: No
• Correction File Format: .ctb
• Correction Files (2D / 3D): 2 / 1
• Processing-on-the-fly (POF) Axes: 2
• POF Image Field Bit Depth: –
• List Memory: ≈8,000 commands
• Recording Channels / Values: 2 / 2¹⁵
• Max Bitmap Pixel Frequency: 50 kHz
• Analog Outputs / Resolution: 2 × 10 bit
• McBSP (OIE Support): No
• RS232 Interface: Yes (Ethernet variant only)
• Step Motor Control: Yes (PCI Express variant only)
• Laser Synchronization: No
• Laser Delay Resolution: 1 µs
• Master/Slave Mode: No
• Sky Writing: No
• Date / Time / Fonts: No
• Speed-Dependent Laser Control: No
• I/O Ports: Yes (8 × 16 bit)
