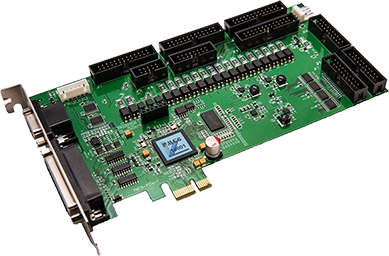

PMC6

Specifications

• Scanner Compatibility: Supports commonly used 16-bit, 18-bit, and 20-bit high-resolution scanners.
• Multi-Axis Output: Capable of outputting up to 3-axis digital scanner signals × 2.
• Built-in DSP: Marking computations do not consume CPU time.
• High-Speed Galvo Updates: Galvo motor position updates every 10 μs.
• First Pulse Suppression: Supports FPK, PPK, and R05 suppression modes.
• Analog Control: Two 16-bit analog output channels.
• Encoder Input:
  • 3-axis encoder inputs
  • Useful for applications like fly-marking object detection or XY table position tracking
• PWM Output:
  • Max frequency: 10 MHz
  • Min pulse width: 0.05 μs
• Motor Control:
  • Supports 4-axis motor control
  • Max output frequency: 10 MHz
• Digital I/O:
  • 16 general-purpose digital outputs
  • 16 digital inputs
• Laser Control: Dedicated 16-bit digital outputs for laser control.
• OS Compatibility: Supports Windows XP / 2000 / Vista / 7 / 8 / 8.1 / 10.
