SPICE3

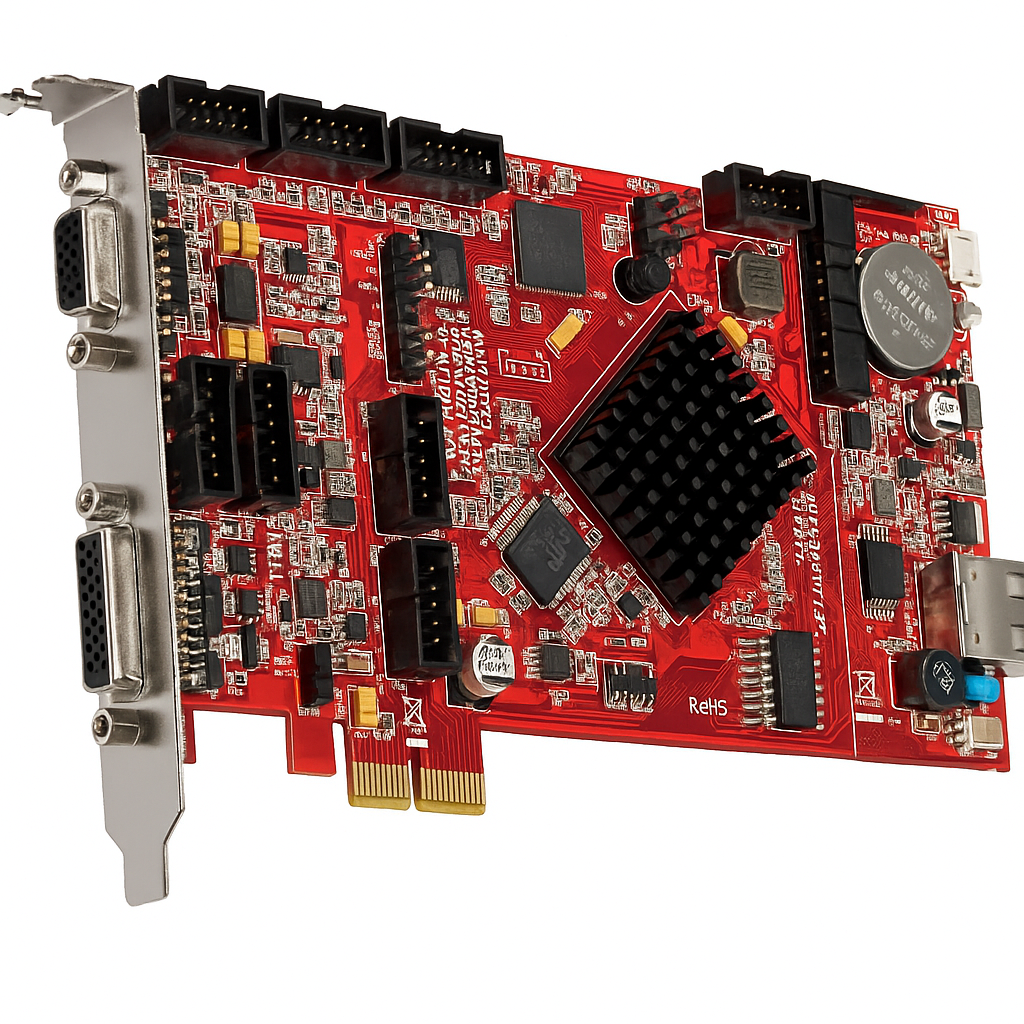

The SP-ICE-3 control card is a universal solution for laser systems with deflection units. Thanks to its highly configurable hardware and .NET-based programming environment, it supports a wide range of laser processing applications with speed and precision.
Your Benefits
- Universal Compatibility: Easily integrates with almost any laser system, even those with specific requirements.
- Flexible Development: The .NET environment and SP-ICE-3 architecture enable fast development for custom applications.
- Centralized Control: Multiple configurable I/O ports and interfaces make SP-ICE-3 the central controller in your laser workflow.
Precise Control with Feedback
- Controls up to 2 deflection units via SL2-100 or RL3-100 protocol
- 20-bit position resolution
- 10 μs step period
- Logs up to 24 million feedback measurements from deflection units
- Enables optimization during development and continuous system monitoring in production
Storage & Interfaces
- 1 GB RAM and 32 GB MicroSD card
→ Store and manage complex laser jobs on board - 5 configurable I/O ports (up to 24-bit)
- 2 quadrature decoders
- USB 2.0 + RS232 interface
Key Features
- Supports 2-, 3-, 4-, and 5-axis deflection units
- Compatible with all common laser sources
- Speed- and position-dependent laser control
- Extended Marking and Processing On The Fly (MOTF)
- Operates as an external control card via Gigabit Ethernet
- Full support for RL3-100 protocol
