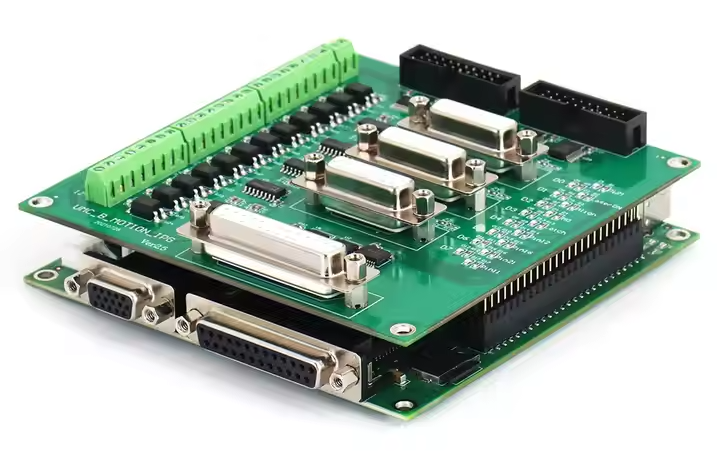

UMC4

Spectifications

• Built-in DSP: Offloads marking computation to onboard processor, avoiding CPU load on the host PC.
• Digital Galvo Control:
  • Supports one XY2-100 digital output
  • Galvo motor position updates every 10 μs
• First Pulse Suppression: Supports FPK, PPK, and R05 suppression modes.
• Analog Output: Two 10-bit analog control signals.
• PWM Output:
  • Maximum frequency: 10 MHz
  • Minimum pulse width: 0.08 μs
• Offline Marking:
  • Supports storage of 16 files
  • Each file can contain 8 sets of auto-text and 8 font types
• Communication: One RS232 port for PLC or external device communication.
• Encoder Input: Supports one encoder channel for mark-on-the-fly operations.
• Motor Control:
  • Supports 1-way stepper or servo motor control
  • Compatible with Pulse/Direction or CW/CCW mode
  • Max frequency: 2 MHz
• Expansion Support: Includes connectors for daughter board extensions.
• OS Compatibility: Supports Windows XP / 2000 / Vista / 7 / 8 / 8.1 / 10
