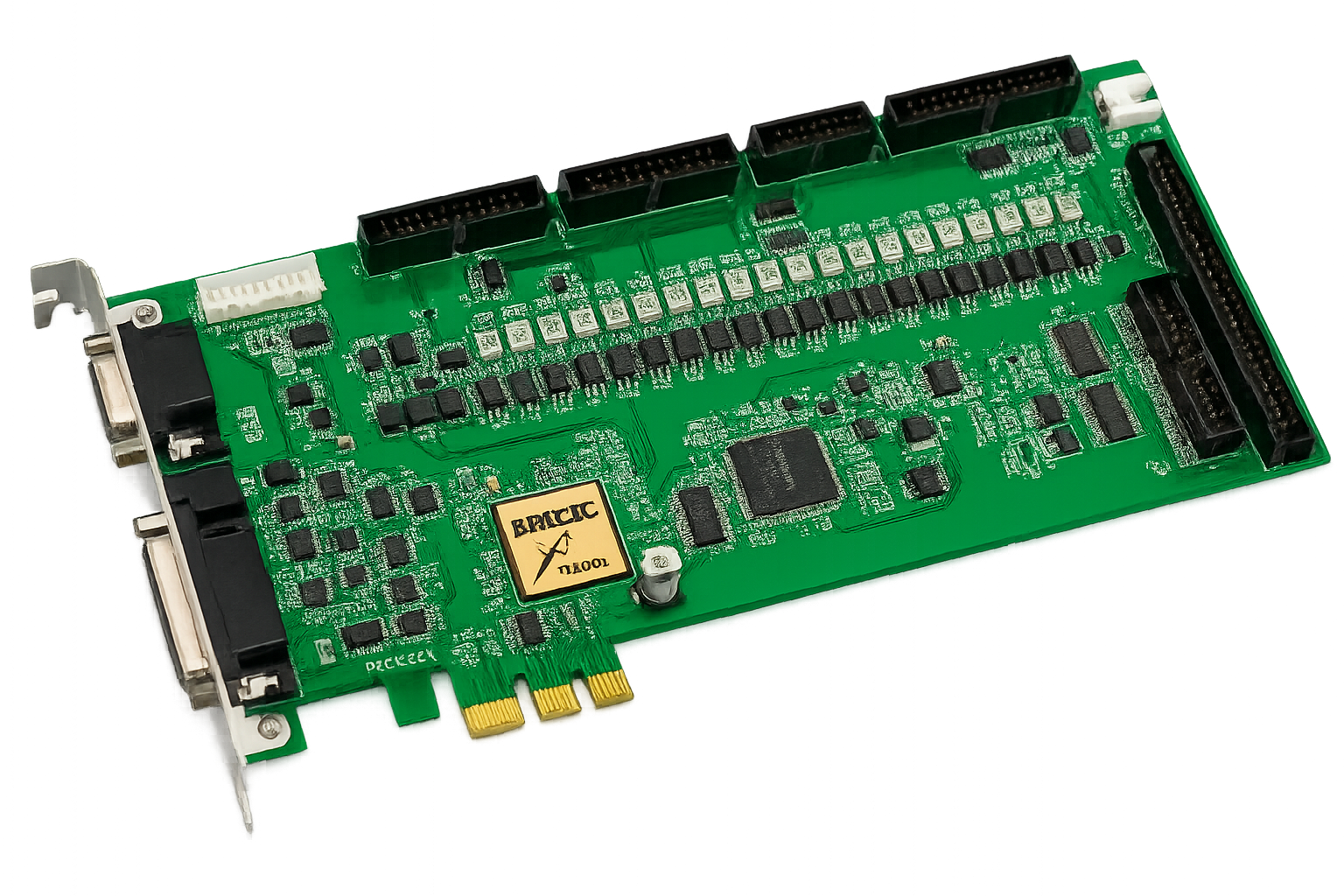

PMC2e

Specifications

• Scanner Support: Compatible with XY2-100 16-bit digital scanners.
• Multi-Axis Output: Supports up to 3-axis digital scanner signal output.
• Built-in DSP: Offloads marking computation from the PC CPU.
• Scanner Update Rate: Digital signal refresh rate at 10 μs.
• First Pulse Suppression: Supports FPK, PPK, and R05 suppression.
• Analog Laser Control: Two 16-bit analog output signals for laser modulation.
• Encoder Input: 3-way encoder inputs for position tracking or synchronization.
• PWM Output:
  • Max frequency: 10 MHz
  • Min pulse width: 0.05 μs
• Motor Control:
  • 4 simultaneous stepper/servo motor control channels
  • Max output frequency: 10 MHz
• Digital I/O:
  • 16 general-purpose digital outputs
  • 16 digital inputs
• Laser Control Outputs: Dedicated 16-bit digital outputs for laser system integration.
• Operating System Support: Windows XP / 2000 / Vista / 7 / 8 / 8.1 / 10
