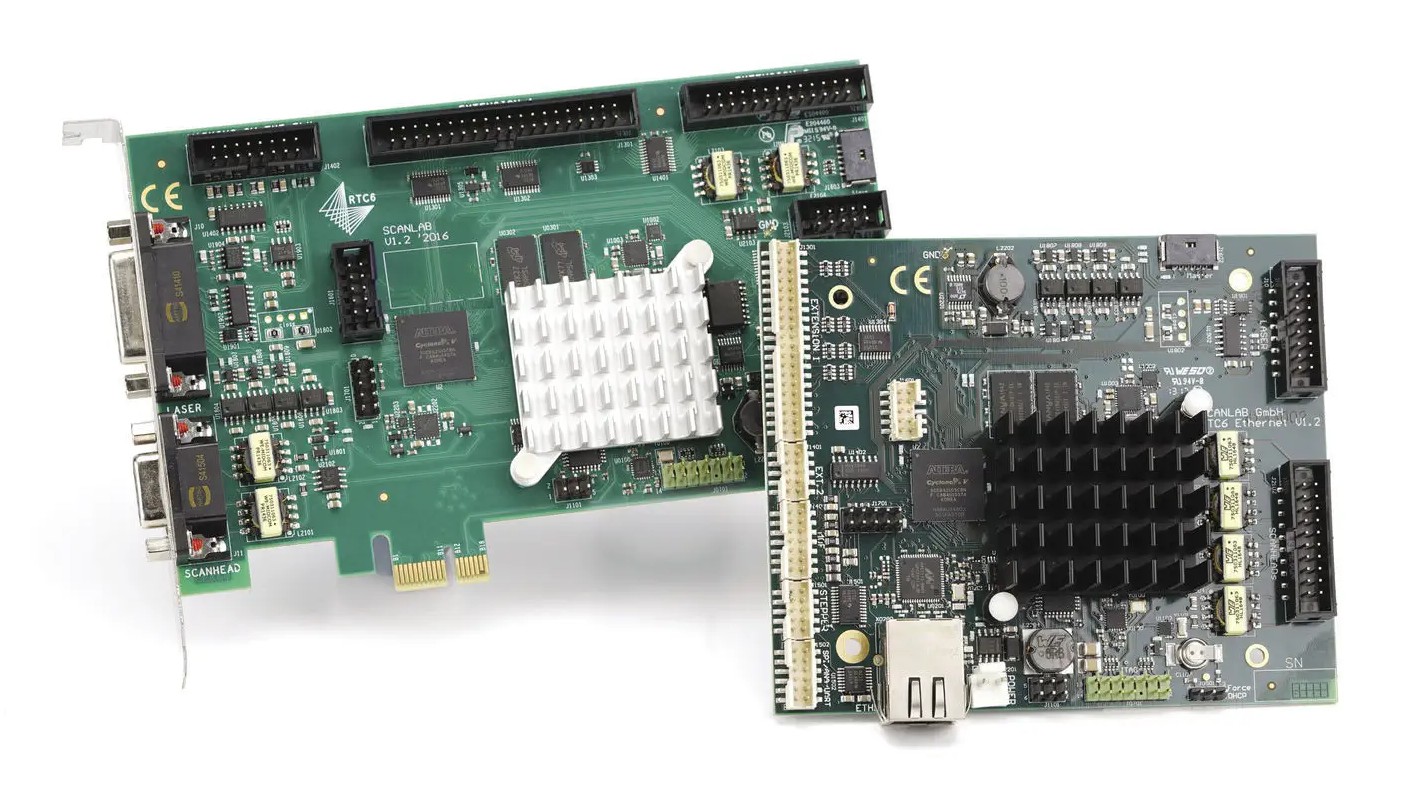

RTC6

Key Features of All RTC Control Boards

• Synchronous Control: Precise synchronization between scan system and laser for accurate marking.
• Universal Laser Compatibility: Supports control modes for all common types of lasers.
• Flexible Process Programming: Enables customizable programming for both vector and bitmap marking workflows.
• Automatic Field Correction: Integrated image field correction ensures consistent quality across the entire marking area.
• Advanced Application Support:
  • 3D marking capabilities
  • “Processing on the fly” for dynamic, real-time applications

RTC6

• PC Interface: PCI Express, Gigabit Ethernet
• Standalone Operation: Yes (Ethernet variant only)
• Remote Interface: Yes (Ethernet variant only)
• Data Streaming: Yes (Ethernet variant only)

Scan Head Interface

• Protocol: SL2-100
• Galvanic Isolation: Yes
• Channels: 2 / 2
• Resolution: 20 bit
• Connector: 9-pin D-SUB

Laser Interface

• Connector: 15-pin D-SUB

Additional Features

• SCANahead Support: Yes (optional)
• Correction File Format: .ct5
• Correction Files (2D / 3D): 8 / 8
• Processing-on-the-fly (POF) Axes: 2
• POF Image Field Bit Depth: 29 bit
• List Memory: 2²²³ (≈8 million commands)
• Recording Channels / Values: 2 / 2²²⁴ or 4 / 2²²³
• Max Bitmap Pixel Frequency: 800 kHz (optionally 3.2 MHz)
• Analog Outputs / Resolution: 2 × 12 bit
• McBSP (OIE Support): Yes
• RS232 Interface: Yes
• Step Motor Control: Yes
• Laser Synchronization: Yes (n × 100 kHz)
• Laser Delay Resolution: 1⁄64 µs
• Master/Slave Mode: Yes
• Sky Writing: Yes
• Date / Time / Fonts: Yes
• Speed-Dependent Laser Control: Yes
• I/O Ports: 8 × 16 bit
